ACCESSORY DRIVE SYSTEMS

These systems include accessories, brackets, drive belts, and hardware your engine needs, saving you the time of sourcing them individually. They’re all-inclusive systems that bolt right onto the engine for factory fit and appearance.

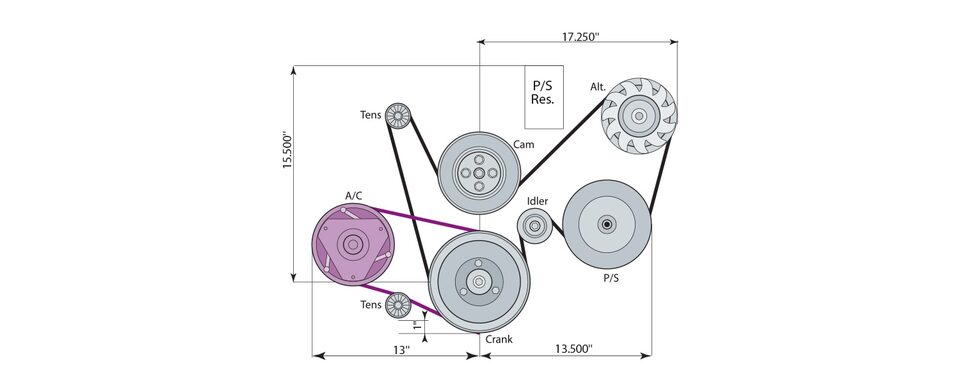

19155066

CTS-V ACCESSORY DRIVE SYSTEM WITH A/C-FIXED DISPLACEMENT COMPRESSOR

Does not work on LS9 and LSA supercharged engines
Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12674582 is strongly recommended
Air conditioning has separate belt; to delete air conditioning, do not install the belt, compressor, or tensioner
Fits all LS-type engines, except production iron block applications
Direct bolt-on for LS3 and LS7 engines

NOTE: Will not work with a cam-phased engine.
NOTE: Will not work on LS327 engine with cast-iron block.
NOTE: Water pump P/N 12681186 NOT included with kit.
NOTE: Includes fixed displacement compressor.
NOTE: Use P/N 19299069 for A/C add-on if Variable Displacement Compressor is needed.

The system includes:

[QTY/Description]
1 Bracket–Air Conditioning
1 Compressor–Air Conditioning
1 Tensioner–Air Conditioning Belt
1 Belt–Air Conditioning Compressor
1 Bracket–Power Steering Pump
1 Pump–Power Steering
1 Pulley–Power Steering Pump
1 Reservoir–Power Steering Fluid
1 Hose–Power Steering Fluid Reservoir With Clamps
1 Bracket–Alternator
1 Alternator1 Pulley–Belt Idler
1 Tensioner–Drive Belt
1 Belt–Water Pump/Generator/ Power Steering
6 Bolt–Transaxle Br
4 Bolt–10 x 1.50 x 90mm
3 Bolt–Hvy HX Acorn Flg Hd
2 Bolt–Hvy HX Acorn Flg Hd
3 Bolt–Hex Flg HD
3 Bolt–Alternator
2 Bolt–Hvy Hex Flg

1 Alternator
1 Pulley–Belt Idler
1 Tensioner–Drive Belt
1 Belt–Water Pump/Generator/ Power Steering
6 Bolt–Transaxle Br
4 Bolt–10 x 1.50 x 90mm
3 Bolt–Hvy HX Acorn Flg Hd
2 Bolt–Hvy HX Acorn Flg Hd
3 Bolt–Hex Flg HD
3 Bolt–Alternator
2 Bolt–Hvy Hex Flg

19299070

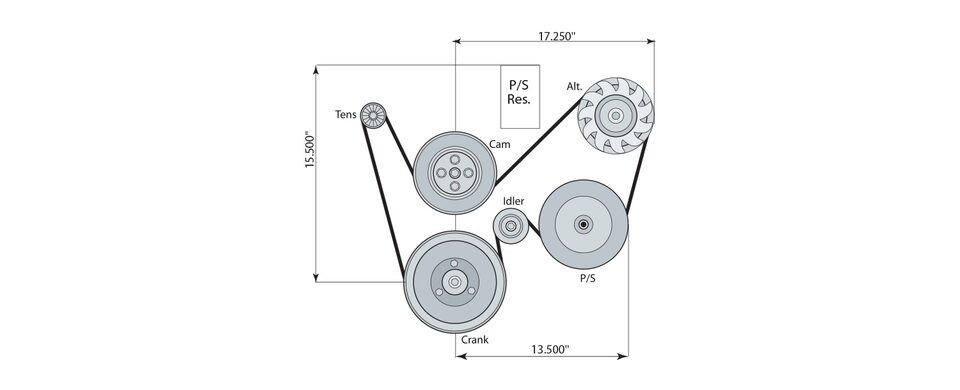

CTS-V ACCESSORY DRIVE SYSTEM WITHOUT A/C

Does not work on LS9 and LSA supercharged engines
Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12674582 is strongly recommended
Fits all LS-type engines, except production iron block applications
Direct bolt-on for LS3 and LS7 engines

NOTE: Will not work with a cam-phased engine.
NOTE: Will not work on LS327 engine with cast-iron block.
NOTE: Water pump P/N 1261186 NOT included with kit.

The system includes:

[QTY/Description]
1 Bracket–Power Steering Pump
1 Pump–Power Steering
1 Pulley–Power Steering Pump
1 Reservoir–Power Steering Fluid
1 Hose–Power Steering Fluid Reservoir With Clamps
1 Bracket–Alternator
1 Alternator
1 Pulley–Belt Idler1 Tensioner–Drive Belt
1 Belt–Water Pump/ Alternator /Power Steering
2 Bolt–Transaxle Br
3 Bolt–Hvy HX Acorn Flg Hd
2 Bolt–Hvy HX Acorn Flg Hd
3 Bolt–Hex Flg HD
3 Bolt–Alternator
2 Bolt–Hvy Hex Flg

1 Tensioner–Drive Belt
1 Belt–Water Pump/ Alternator /Power Steering
2 Bolt–Transaxle Br
3 Bolt–Hvy HX Acorn Flg Hd
2 Bolt–Hvy HX Acorn Flg Hd
3 Bolt–Hex Flg HD
3 Bolt–Alternator
2 Bolt–Hvy Hex Flg

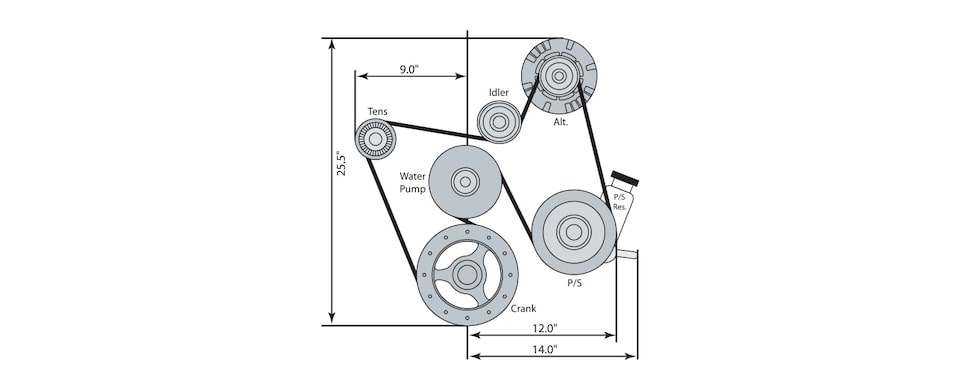

19257325

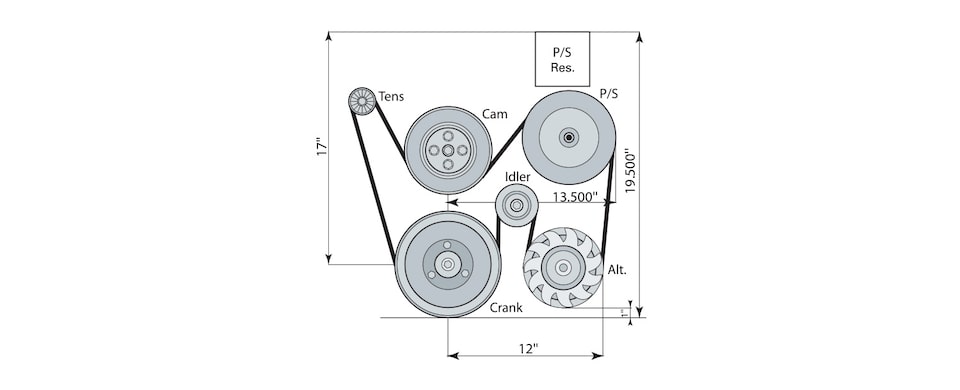

CORVETTE ACCESSORY DRIVE SYSTEM WITHOUT A/C

Fits all non-LSA and LS9 LS-type engines
Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12674582 is strongly recommended
Direct bolt-on for LS3 & LS7 engines

NOTE: Use on LS327 with cast-iron block requires harmonic balancer P/N 12674582.
NOTE: Water pump P/N 12681186 not included with kit.
NOTE: Will not work with cam-phased engine.

The system includes:

[QTY/Description]
1 Bracket–Power Steering Fluid Reservoir
1 Bracket–Alternator and Power Steering Pump
1 Alternator
1 Pump–Power Steering
1 Pulley–Power Steering Pump
1 Brace–Power Steering Pump Front
1 Hose–Power Steering Fluid Reservoir With Clamps
1 Reservoir–Power Steering Fluid
1 Tensioner–Drive Belt
1 Pulley–Belt Idler
1 Belt–Water Pump/ Alternator /Power Steering Pump
2 Bolt–10 x 1.5 x 40mm - 15mm Drive
1 Bolt–10 x 1.5 x 110mm - 15mm Drive
1 Bolt–10 x 1.5 x 160mm - 15mm Drive
3 Bolt–10 x 1.5 x 75mm - 15mm Drive
1 Bolt–10 x 1.5 x 65mm - 15mm Drive
2 Bolt–10 x 1.5 v 95mm – Drive
2 Bolt–8 x 1.25 x 30mm - 12mm Drive
1 Cap–Power Steering Fluid Reservoir
2 Bolt–8 x 1.25 x 85mm - 13mm Drive

1 Belt–Water Pump/ Alternator /Power Steering Pump
2 Bolt–10 x 1.5 x 40mm - 15mm Drive
1 Bolt–10 x 1.5 x 110mm - 15mm Drive
1 Bolt–10 x 1.5 x 160mm - 15mm Drive
3 Bolt–10 x 1.5 x 75mm - 15mm Drive
1 Bolt–10 x 1.5 x 65mm - 15mm Drive
2 Bolt–10 x 1.5 v 95mm – Drive
2 Bolt–8 x 1.25 x 30mm - 12mm Drive
1 Cap–Power Steering Fluid Reservoir
2 Bolt–8 x 1.25 x 85mm - 13mm Drive

19299069

CORVETTE ACCESSORY DRIVE SYSTEM WITH A/C ADD-ON

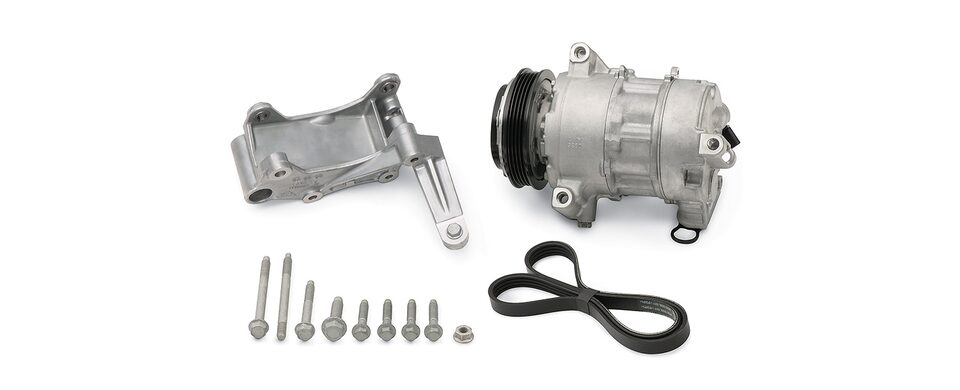

Kit includes mounting bracket, bolts, belt, A/C compressor, and instruction sheet.
Intended to be used in conjunction with P/N 19257325 for non-A/C applications. Not verified to work with any non-GM FEAD kit.
Includes Variable Displacement Compressor

The system includes:

[QTY/Description]
1 Stud–10 x 1.5x127mm - 7mm Drive
1 Bracket–Air Conditioning Compressor
1 Bolt–10x1.5x40mm - 15mm Drive
1 Compressor-Air Conditioning
1 Nut–10 x 1.5mm - 15mm Drive

[QTY/Description]
1 Stud–10 x 1.5x127mm - 7mm Drive
1 Bracket–Air Conditioning Compressor
1 Bolt–10x1.5x40mm - 15mm Drive
1 Compressor-Air Conditioning
1 Nut–10 x 1.5mm - 15mm Drive
1 Bolt–10 x 1.5 x 110mm - 15mm Drive
1 Bolt–10 x 1.5 x 160mm - 15mm Drive
1 Bolt–10 x 1.5 x 90mm - 15mm Drive
1 Tensioner–Air Conditioning Compressor Belt
1 Belt–Air Conditioning Compressor (1040mm - Long)

1 Bolt–10 x 1.5 x 110mm - 15mm Drive
1 Bolt–10 x 1.5 x 160mm - 15mm Drive
1 Bolt–10 x 1.5 x 90mm - 15mm Drive
1 Tensioner–Air Conditioning Compressor Belt
1 Belt–Air Conditioning Compressor (1040mm - Long)

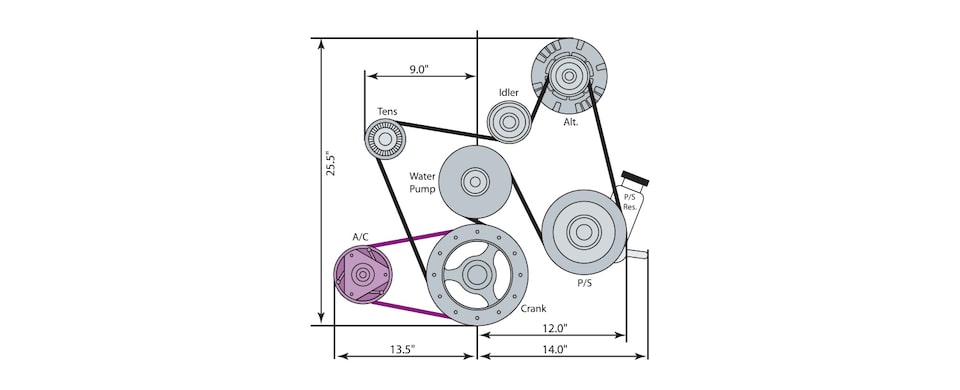

19155067

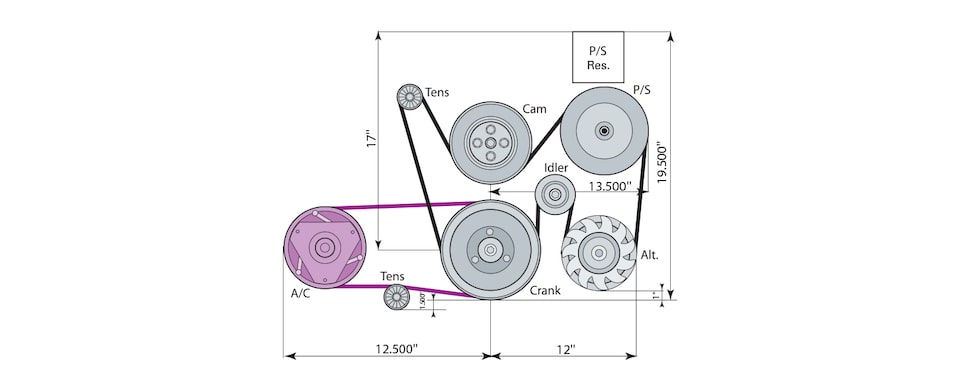

CORVETTE ACCESSORY DRIVE SYSTEM WITH A/C

Includes all components in Kits #19257325 and #19299069.
Fits all non-LSA and LS9 LS-type engines
Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12620556 is strongly recommended
Air conditioning has separate belt; to delete air conditioning, do not install the belt, compressor, or tensioner
Direct bolt-on for LS3 & LS7 engines

NOTE: Use on LS327 iron block engine requires harmonic balancer P/N 12601402.
NOTE: Water pump P/N 12681186 not included with kit.
NOTE: Will not work with cam-phased engine.

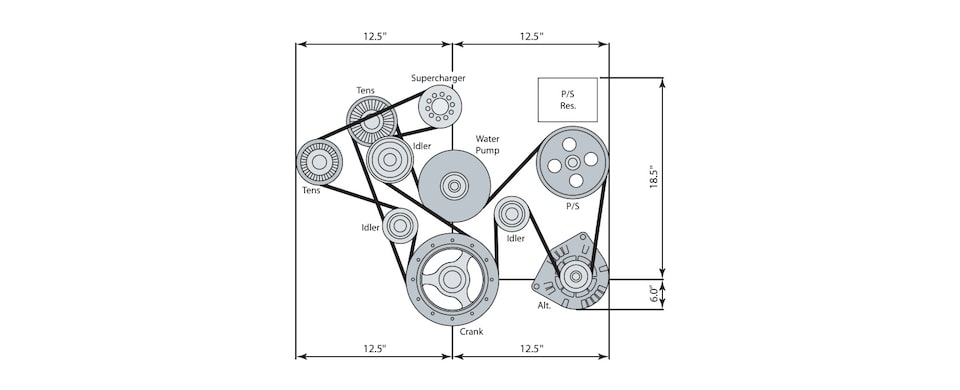

19243525

LSA ACCESSORY DRIVE SYSTEM WITHOUT A/C

The front engine assembly dress components used in the CTS-V without A/C for installations in other vehicles

The system includes:

[QTY/Description]
1 Bracket– Alternator
1 Alternator Asm
4 Bolt–Hvy Hx Acorn Flg Hd
3 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket–P/S Pump
2 Bolt–Rad Upr Mt
1 Pulley–P/S Pump
1 Pump Asm–P/S
1 Reservoir Asm–P/S Fluid
1 Hose Asm–P/S Fluid Rsvr Otlt
3 Bolt– Alternator
4 Bolt–Hfh, M8 x 1.25 x 29, 19 Th
1 Bracket–Belt Idler Pulley
3 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket–Drv Belt Tensr
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bolt–Hvy Hx Acorn Flg Hd
1 Tensioner Asm–Drv Belt
2 Bolt–Hex Washer Hd
1 Pulley Asm–Spchg Belt Idler
1 Pulley Asm–Belt Idler
1 Tensioner Asm–Spchg Belt
1 Bolt–Hvy Hx Acorn Flg Hd
1 Pulley Asm–Belt Idler
1 Belt–w/Pmp & Alternator & P/S Pump
1Belt–Spchg

3 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket–Drv Belt Tensr
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bolt–Hvy Hx Acorn Flg Hd
1 Tensioner Asm–Drv Belt
2 Bolt–Hex Washer Hd
1 Pulley Asm–Spchg Belt Idler
1 Pulley Asm–Belt Idler
1 Tensioner Asm–Spchg Belt
1 Bolt–Hvy Hx Acorn Flg Hd
1 Pulley Asm–Belt Idler
1 Belt–w/Pmp & Alternator & P/S Pump
1 Belt–Spchg

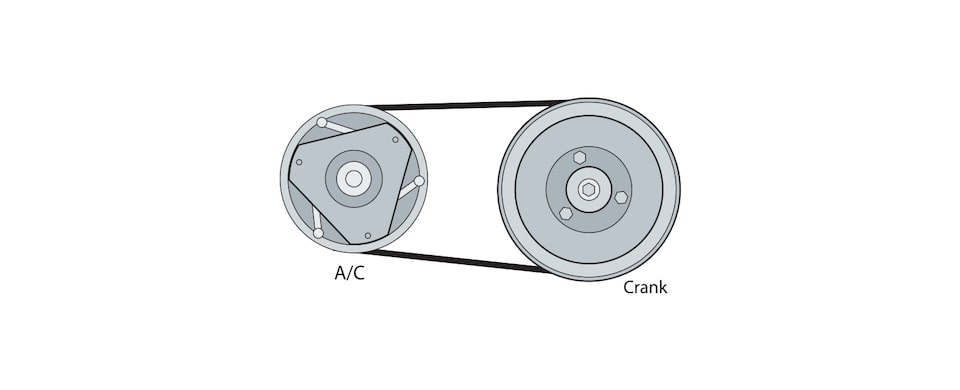

19244106

LSA ACCESSORY DRIVE SYSTEM A/C ADD-ON KIT

Components needed to add A/C to your LSA-equipped vehicle
Kit includes mounting bracket, bolts, belt, A/C compressor, and instruction sheet
Intended to be used in conjunction with P/N 19243525 kit for non-A/C applications. Not verified to work with any non-GM FEAD kit.

The system includes:

[QTY/Description]
4 Bolt–Hex Flg Hd
1 Bracket–AC Cmpr
4 Bolt–Hex Washer Hd

[QTY/Description]
4 Bolt–Hex Flg Hd
1 Bracket–AC Cmpr
4 Bolt–Hex Washer Hd
1 Compressor Asm–AC
1 Tool–AC Cmpr Belt
1 Belt–AC Cmpr

1 Compressor Asm–AC
1 Tool–AC Cmpr Belt
1 Belt–AC Cmpr

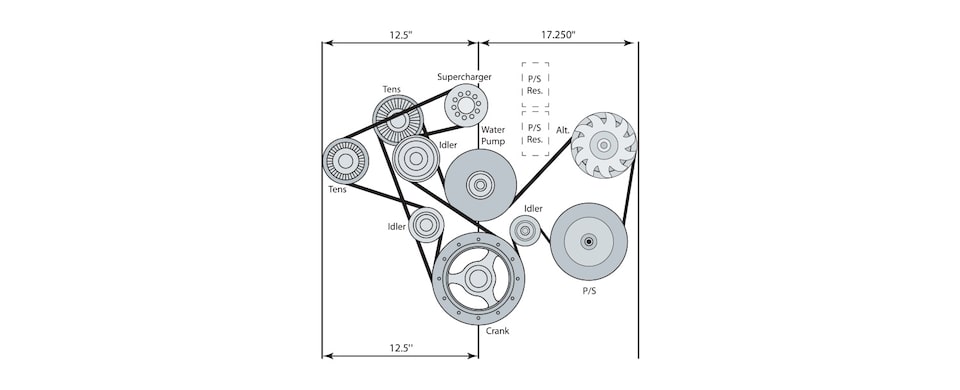

19303242

MODIFIED LSA ACCESSORY DRIVE SYSTEM WITHOUT A/C

Similar to LSA Accessory Drive Kit P/N 19243525, but designed for retrofit applications with a relocated alternator and power steering pump to provide chassis clearance in older vehicles
Includes power steering pump and two remote mount reservoirs; builder to use the reservoir that provides the best fit for the application

Requires fabrication of reservoir mounting bracket
Requires reservoir-to-pump hose
Can be used with either LSA A/C add-on or Corvette A/C add-on kit

The system includes:

[QTY/Description]
1 Belt-w/pump & Alternator & P/S Pump
1 Tensioner ASM–DRV Belt
2 Bolt/Screw–DRV Belt Tensr
1 Pulley ASM–Belt Idler
1 Belt–SPCHG
1 Tensioner ASM–SPCHG Belt
1 Bolt/Screw–SPCHG Belt Tensr
1 Bracket–SPCHG Belt Tensr
1-Bolt/Screw–SPCHG Belt Tensr Brkt
2 Bolt/Screw–SPCHG Belt Tensr Brkt
1 Pulley ASM–SPCHG Belt Idler
1 Pulley ASM–SPCHG Belt Idler
2 Bolt/Screw Belt Idler Pul
1 Bracket–SPCHG Belt Idler Pul
1 Bolt/Screw–SPCHG Belt Idler Pul Brkt
3 Bolt/Screw–SPCHG Belt Idler Pul Brkt
1 Bracket–Gen/P/STG/ Pump
3 Bolt/Screw–Alternator Brkt
1 Brace–P/S Pump
1 Bolt/Screw
2 Bolt/Screw
2 Bolt/Screw
2 Bolt/Screw
1 Pulley–P/S Pump
1 P/S Pump
1 Alternator
1 P/S Pump Reservoir
1 P/S Pump Reservoir
1 Cap–P/S Reservoir
1 P/S Pump Reservoir Bracket
1 Connector

3 Bolt/Screw–SPCHG Belt Idler Pul Brkt
1 Bracket–Gen/P/STG/ Pump
3 Bolt/Screw–Alternator Brkt
1 Brace–P/S Pump
1 Bolt/Screw
2 Bolt/Screw
2 Bolt/Screw
2 Bolt/Screw
1 Pulley–P/S Pump
1 P/S Pump
1 Alternator
1 P/S Pump Reservoir
1 P/S Pump Reservoir
1 Cap–P/S Reservoir
1 P/S Pump Reservoir Bracket
1 Connector

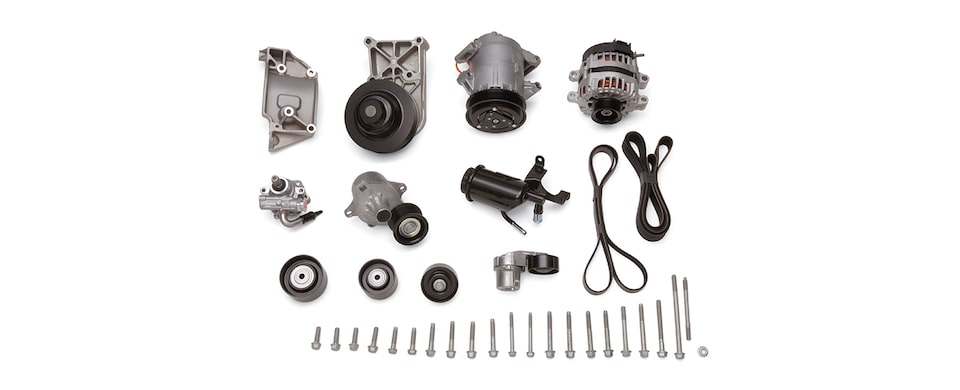

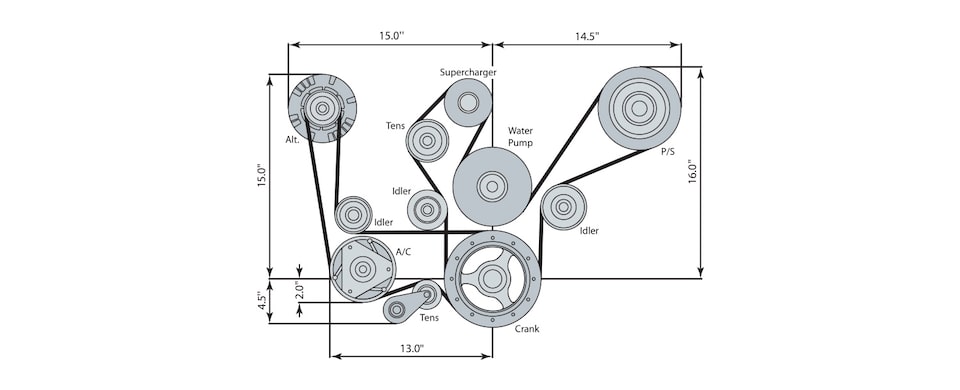

19368945

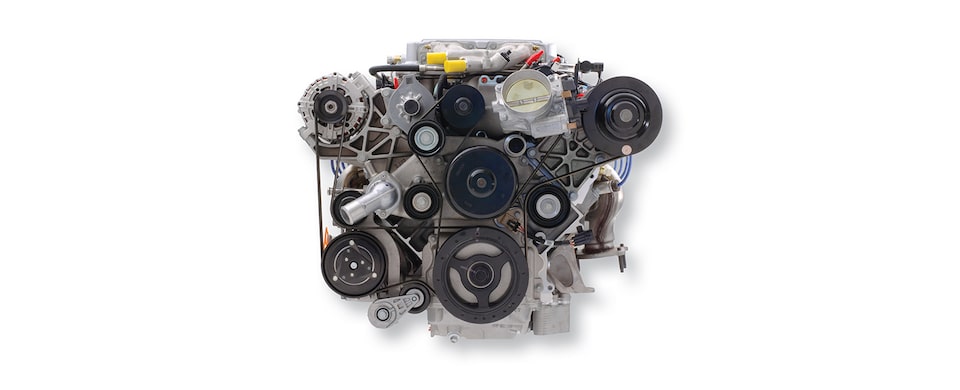

LS9 ACCESSORY DRIVE SYSTEM WITH A/C

Chevy Performance Accessory Drive System with A/C Part No. 19243524 for LS9

The Chevrolet Performance FEAD kit for the powerful LS9 is complete, as used in the ZR1 Corvette

NOTE: This kit includes the generator bracket and bolts that are already attached to a Chevrolet Performance LS9 Crate Engine. This bracket must be bolted on the cylinder head prior to installing the water pump. If you do not have a Chevrolet Performance LS9 Crate Engine, you will also need to separately purchase the LS9 Water Pump Kit (12622036), the LS9 Lifter Valley Cover (12605719), and the LS9 Coolant Air Bleeds (12606242 and 12606243) to use this FEAD kit. If you have a Chevrolet Performance LS9 Crate Engine, you do not need any of these additional parts.

The system includes:

[QTY/Description]
1 Pump Asm–P/S
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket Asm–P/S Pump
6 Bolt–Hvy Hx Acorn Flg Hd
1 Reservoir Asm–P/S Fluid
1 Pulley Asm–Belt Idler
1 Bolt–Drv Belt Tensr
1 Pulley Asm–Belt Idler
1 Bolt–Hvy Hx Acorn Flg Hd
1 Tensioner Asm–Drv Belt
5 Bolt–Trans Br Brkt
1 Bracket–AC Cmpr
1 Stud–Special M10 x 1.5 x 127
3 Bolt–Hex Washer Hd
1 Tensioner Asm–AC Cmpr Belt
1 Pulley Asm–Belt Idler
1 Compressor Asm–AC
1 Nut–Alternator
1 Bolt/Screw–AC Cmpr
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bolt–Hvy Hex Acorn Flg Hd
1 Alternator Asm
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket–Alternator & Drv Belt Tensr
1 Belt–Spchg & w/Pmp & P/S Pump
1 Belt–AC Cmpr

3 Bolt–Hex Washer Hd
1 Tensioner Asm–AC Cmpr Belt
1 Pulley Asm–Belt Idler
1 Compressor Asm–AC
1 Nut–Alternator
1 Bolt/Screw–AC Cmpr
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bolt–Hvy Hex Acorn Flg Hd
1 Alternator Asm
2 Bolt–Hvy Hx Acorn Flg Hd
1 Bracket–Alternator & Drv Belt Tensr
1 Belt–Spchg & w/Pmp & P/S Pump
1 Belt–AC Cmpr

19369108

LC9 5.3L ACCESSORY DRIVE SYSTEM WITHOUT A/C

The workhorse 5.3L LC9 engine assemblies come with an alternator bracket attached. To complete the installation of your engine, the parts listed below will complete the factory-installed FEAD assembly.

The system includes:

[QTY/Description]
1 Drive Belt
1 Idler Pulley w/Bolt
1 Alternator
2 Alternator Bolts
1 P/S Pump
1 P/S Brace

[QTY/Description]
1 Drive Belt
1 Idler Pulley w/Bolt
1 Alternator
2 Alternator Bolts
1 P/S Pump
1 P/S Brace
2 P/S Brace Nuts
1 P/S Brace Bolt
1 P/S Pump Pulley
3 Stg Pump Mtg Bolt
1 Bolt 3/8" x 16
1 Nut 3/8" x 16
1 Washer

2 P/S Brace Nuts
1 P/S Brace Bolt
1 P/S Pump Pulley
3 Stg Pump Mtg Bolt
1 Bolt 3/8" x 16
1 Nut 3/8" x 16
1 Washer

19260892

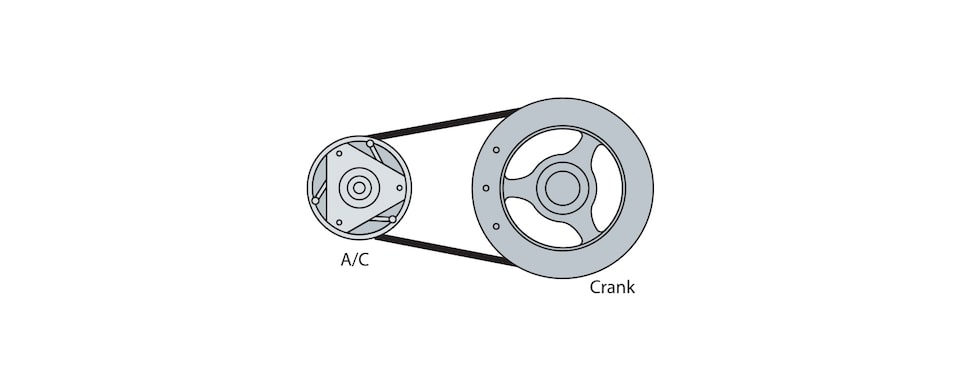

LC9 5.3L & L96 6.0L ACCESSORY DRIVE SYSTEM A/C ADD-ON

Chevrolet Performance LC9 5.3L Accessory Drive System with LC9 5.3L A/C Add-On Kit Part No. 19260892

Kit includes mounting bracket, bolts, belt, AC compressor, and instruction sheet
Intended to be used in conjunction with P/N 19258433 kit for non-AC applications. Not verified to work with any non-GM FEAD kit.

The system includes:

[QTY/Description]
1 AC Compressor
1 Mtg Bracket
3 Bracket Bolts

[QTY/Description]
1 AC Compressor
1 Mtg Bracket
3 Bracket Bolts
3 Comp Bolts–Long
1 Comp Bolt–Short
1 Belt Kit (w/Tool) AC

3 Comp Bolts–Long
1 Comp Bolt–Short
1 Belt Kit (w/Tool) AC

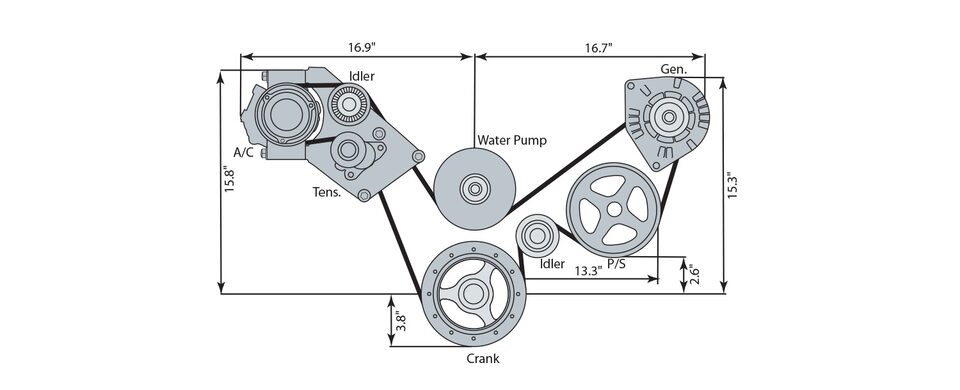

19355805

LS3 ACCESSORY DRIVE SYSTEM

High mount A/C provides clearance to frame
Fits most non-LSA and non-LS9 SC engines

The system includes:

[QTY/Description]
1 Instruction Sheet
1 Belt
1 Bracket
1 Pulley Asm–Belt Idler
1 Tensioner
1 Pump Asm–P/S
1 Cap Asm–P/S Fluid Reservoir
1 Reservoir Asm–P/S
1 Bracket Asm–Alt & P/S Pump
3 Bolt–Alt & P/S Bracket
2 Bolt–P/S Pump
2 Bolt–Brace & P/S Pump
1 Pulley–P/S Pump
1 Alternator Asm
1 Bolt–Alt & P/S Bracket
2 Tensioners
1 Hose–P/S Fluid Reservoir w/clamps
1 Compressor
1 Emblem
3 Bolt–Bracket to Head, M10 x 1.5 x 45
2 Bolt–Bracket
4 Bolt–Alternator & Bracket Compressor
1 Brace–P/S Pump Front
1 Pulley

1 Pulley–P/S Pump
1 Alternator Asm
1 Bolt–Alt & P/S Bracket
2 Tensioners
1 Hose–P/S Fluid Reservoir w/clamps
1 Compressor
1 Emblem
3 Bolt–Bracket to Head, M10 x 1.5 x 45
2 Bolt–Bracket
4 Bolt–Alternator & Bracket Compressor
1 Brace–P/S Pump Front
1 Pulley

19329418

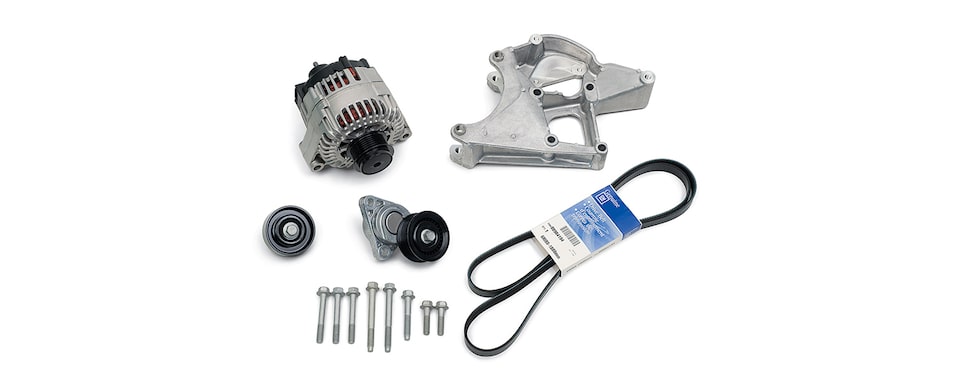

DR525 ACCESSORY DRIVE SYSTEM

Fits all non-LSA and LS9 LS-type engines
Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12620556 is strongly recommended
Direct bolt-on for LS3 & LS7 engines

NOTE: Use on LS327 iron block engine requires harmonic balancer P/N 12601402.
NOTE: Water pump P/N 1261186 not included with kit.
NOTE: Will not work with cam-phased engine.

The system includes:

[QTY/Description]
1 Tensioner–Drive Belt
1 Pulley–Belt Idler
1 Belt–Water Pump/Generator
2 Bolt–10 x 1.5 x 40mm - 15mm Drive
1 Bolt–10 x 1.5 x 110mm - 15mm Drive

[QTY/Description]
1 Tensioner–Drive Belt
1 Pulley–Belt Idler
1 Belt–Water Pump/Generator
2 Bolt–10 x 1.5 x 40mm - 15mm Drive
1 Bolt–10 x 1.5 x 110mm - 15mm Drive
1 Bolt–10 x 1.5 x 160mm - 15mm Drive
3 Bolt–10 x 1.5 x 75mm - 15mm Drive
1 Bolt–10 x 1.5 x 65mm - 15mm Drive
2 Bolt–10 x 1.5 x 95mm – Drive
2 Bolt–8 x 1.25 x 30mm - 12mm Drive
2 Bolt–8 x 1.25 x 85mm - 13mm Drive

1 Bolt–10 x 1.5 x 160mm - 15mm Drive
3 Bolt–10 x 1.5 x 75mm - 15mm Drive
1 Bolt–10 x 1.5 x 65mm - 15mm Drive
2 Bolt–10 x 1.5 x 95mm – Drive
2 Bolt–8 x 1.25 x 30mm - 12mm Drive
2 Bolt–8 x 1.25 x 85mm - 13mm Drive

12679459

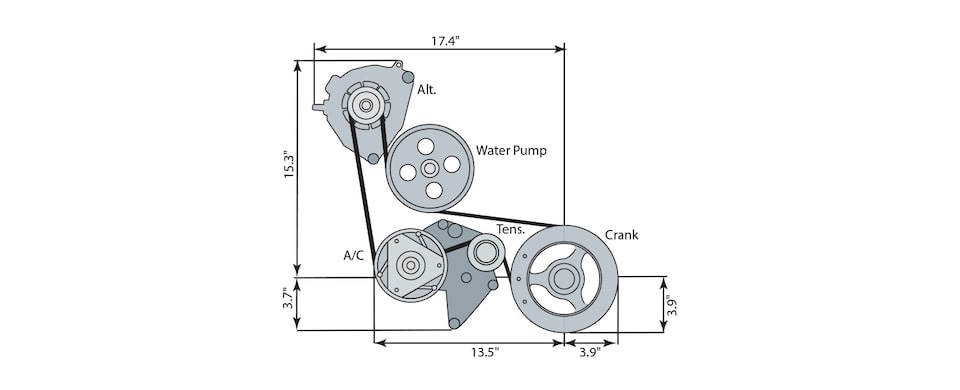

LT1 ACCESSORY DRIVE SYSTEM

This package includes production mounting brackets, hardware, and drive belt to mount the alternator and A/C compressor in the same configuration as the LT1 equipped Stingray

NOTE: Power steering is not included, as the production car has electric assist.

The system includes:

[QTY/Description]
1 Alternator
3 Bolt–Gen (2), Tensioner (1)
1 Tensioner
3 Bolt–Tensioner (1), Compressor (2)
1 Bracket, A/C Compressor
1 Belt–Alternator & A/C Compressor

[QTY/Description]
1 Alternator
3 Bolt–Gen (2), Tensioner (1)
1 Tensioner
3 Bolt–Tensioner (1), Compressor (2)
1 Bracket, A/C Compressor
1 Belt–Alternator & A/C Compressor
1 Stud–A/C Compressor Bracket
1 Nut–M8 x 1.25
1 Compressor
1 Bolt–A/C Compressor to Bracket - Long bolt
1 Bolt–A/C Bracket
1 Emblem

1 Stud–A/C Compressor Bracket
1 Nut–M8 x 1.25
1 Compressor
1 Bolt–A/C Compressor to Bracket - Long bolt
1 Bolt–A/C Bracket
1 Emblem

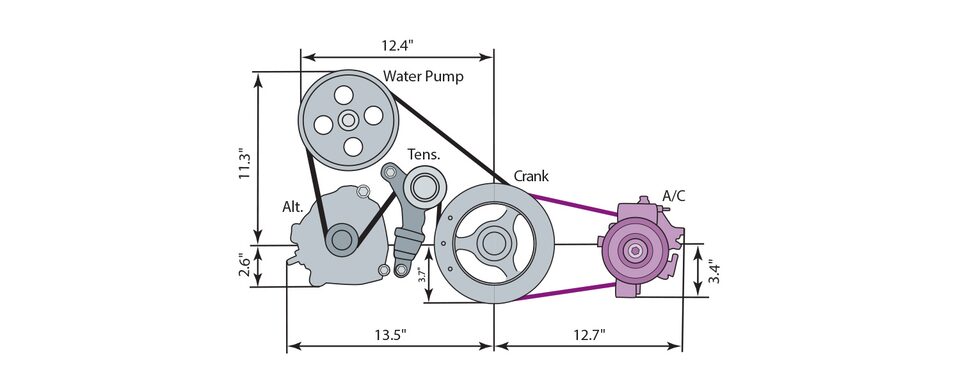

12678595

LT1 CAMARO WET SUMP ACCESSORY DRIVE SYSTEM WITHOUT A/C

Fits GEN VI Camaro w/ LT1
Includes alternator, brackets, tensioner, and bolts
Use A/C Add-on Kit P/N 19332591

The system includes:

[QTY/Description]
1 Bracket
3 Bolt–Alternator & Tensioner
2 Alternator Bracket

[QTY/Description]
1 Bracket
3 Bolt–Alternator & Tensioner
2 Alternator Bracket
1 Alternator
1 Belt
1 Tensioner
1 Bolt - Tensioner

1 Alternator
1 Belt
1 Tensioner
1 Bolt - Tensioner

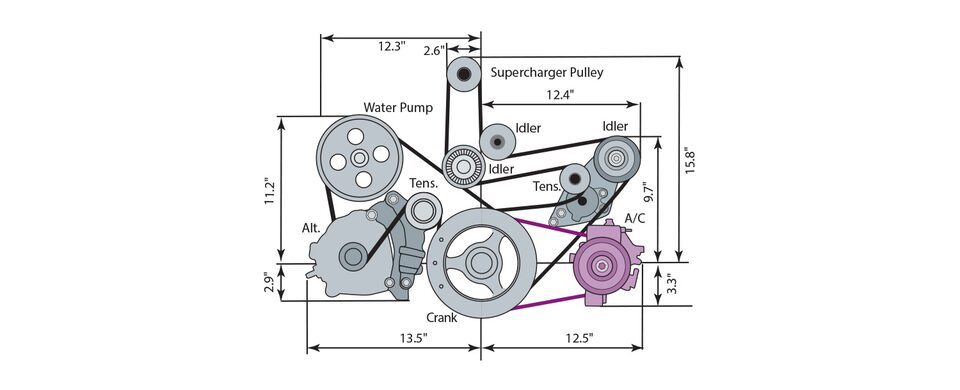

19332590

LT4 WET SUMP ACCESSORY DRIVE SYSTEM

Fits Gen-V LT4 Wet Sump engines
Air conditioning has a separate belt – see Kit P/N 19332591
Production version of the 2016 Cadillac CTS-V and Camaro ZL1

The system includes:

[QTY/Description]
1 Belt–Water Pump and Alternator
1 Belt-Supercharger
2 Brackets
2 Bolt–M8 x 1 x 70
4 Bolt–M8 x 1.25 x 45

[QTY/Description]
1 Belt–Water Pump and Alternator
1 Belt-Supercharger
2 Brackets
2 Bolt–M8 x 1 x 70
4 Bolt–M8 x 1.25 x 45
5 Bolt–M10 x 1.5 x 105
2 Bolt–M8 x 1.25 x 60
1 Alternator
2 Tensioners
3 Pulleys

5 Bolt–M10 x 1.5 x 105
2 Bolt–M8 x 1.25 x 60
1 Alternator
2 Tensioners
3 Pulleys

19332591

LT4 WET SUMP AND LT1 CAMARO A/C ADD-ON KIT

Intended to be used in conjunction with P/N 19332590 or P/N 19339110 Chevrolet Performance Kits
Includes Variable Displacement Compressor
Production version of the 2016 Cadillac CTS-V

The system includes:

[QTY/Description]
1 Belt
1 Compressor Unit
1 Bolt–M8 x 1.25 x 100
1 Bolt–M8 x 1.0 x 70

[QTY/Description]
1 Belt
1 Compressor Unit
1 Bolt–M8 x 1.25 x 100
1 Bolt–M8 x 1.0 x 70
1 Stud
1 Nut–M8 x 1.25
1 Bracket
1 Bolt–M8 x 1.25 x 45
4 Bolt–M10 x 1.5 x 45

1 Stud
1 Nut–M8 x 1.25
1 Bracket
1 Bolt–M8 x 1.25 x 45
4 Bolt–M10 x 1.5 x 45

19369109

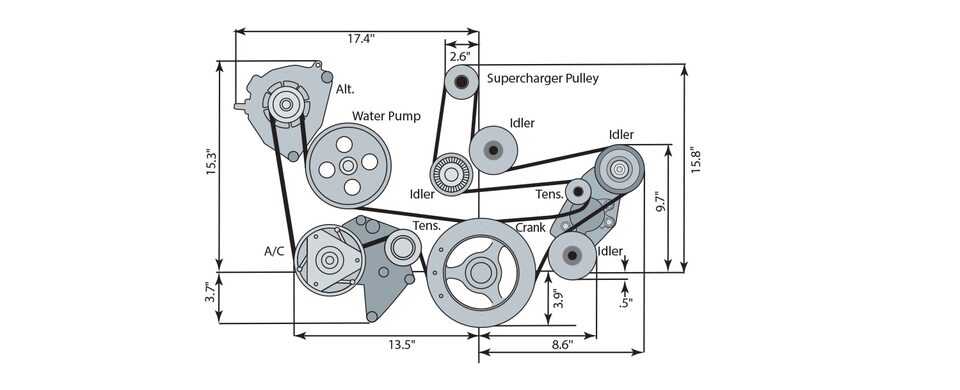

LT4 DRY SUMP ACCESSORY DRIVE SYSTEM WITH A/C

Fits Gen-V LT4 Dry Sump engines
Includes Variable Displacement Compressor, does not require A/C Add-on Kit
Production version of the 2016 Chevrolet Corvette Z06

The system includes:

[QTY/Description]
1 Belt–Water Pump and Generator
1 Bracket–Comp/Tensioner
3 Bolt–M10 x 1.5 x 85
1 Alternator
1 Compressor
2 Tensioners
1 Bolt–M8 x 1.25 x 45
1 Bolt–M8 x 1.25 x 120.8

[QTY/Description]
1 Belt–Water Pump and Generator
1 Bracket–Comp/Tensioner
3 Bolt–M10 x 1.5 x 85
1 Alternator
1 Compressor
2 Tensioners
1 Bolt–M8 x 1.25 x 45
1 Bolt–M8 x 1.25 x 120.8
7 Bolt–M8 x 1.25 x 60
1 Stud
1 Nut–M8 x 1.25
1 Belt–Supercharger
4 Pulleys
1 Bracket–Tensioner
2 Bolt–M8 x 1.25 x 35
2 Bolt–M10 x 1.5 x 80
