LS-LT-LSX-CYLINDER-BLOCK-COMPONENTS

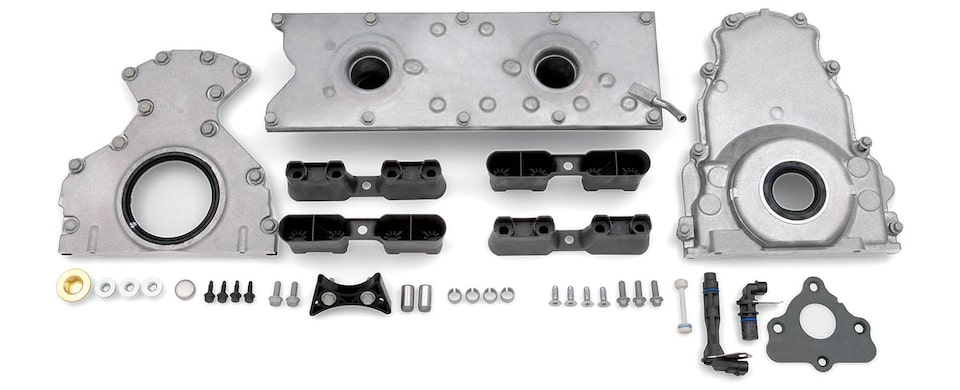

GEN III BARE BLOCK COMPLETION COMPONENTS

Chevrolet Performance LS/LT/LSX-Series Production Cylinder LSX Bowtie Engine Block Completion Components for Gen III

12577927          Qty 1      Valley Cover
12561211          Qty 2      Cam Sensor
12561243          Qty 1      Front Cover (with seal)
1453658            Qty 2      Transmission Alignment Dowel
12589016          Qty 1      Cam Retainer Plate

11561455          Qty 4     Cam Retainer Bolts
12588670          Qty 1       Trim Chain Damper
12560228          Qty 1       Camshaft Sensor
12570326          Qty 4     Head Locating Dowels
12595365          Qty 4     Lifter Guide
12639250          Qty 1       Rear Cover (with seal)

19299099

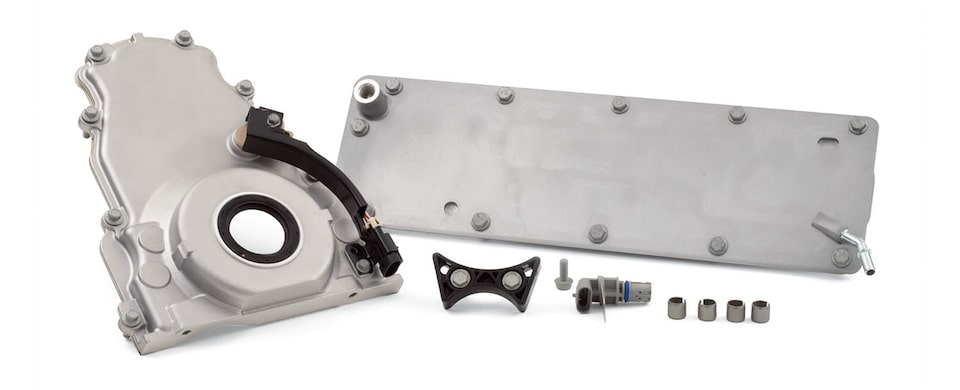

GEN IV BLOCK COMPLETION KIT – NON D.O.D.

Chevrolet Performance LS/LT/LSX-Series Production Cylinder LSX Bowtie Engine Block or Gen IV Completion Kit

Complete your LSX or Gen IV production engine with production components
Kit includes:
- (1) 12633906 Front Engine Cover
- (1) 12599296 Valley Cover
- (4) 12570326 Head Locator Dowels
- (1) 12585546 Crankshaft Sensor
- (1) 11515756 Crank Sensor Bolt
- (1) 12588670 Timing Chain Damper

25534412

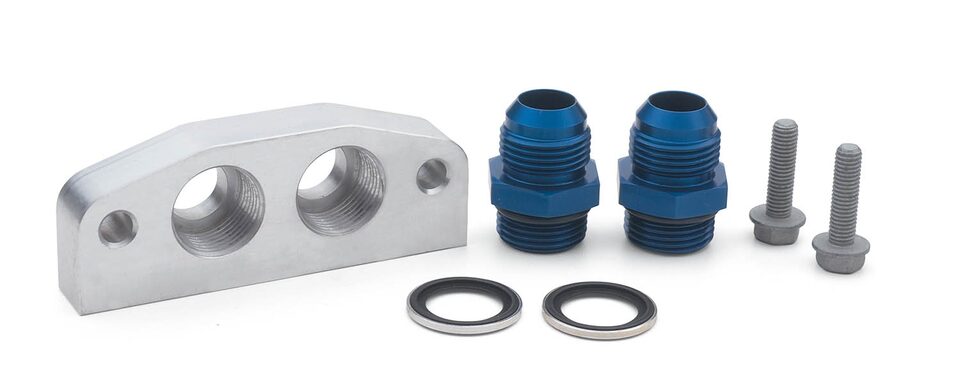

OIL HOSE ADAPTERS

Chevrolet Performance LS/LT/LSX-Series Production Cylinder LSX Bowtie Engine Block Oil Hose Adapter

Kit adapts the production LT1 and LS7 Oil Pan to aftermarket AN-style hoses for aftermarket dry-sump oil tanks
Bolts directly to oil pan, and has AN male outlet for AN -12 fittings
Includes 1 adapter, 2 fittings, 2 bolts, and 2 sealing gaskets
