LSX BOWTIE BLOCK
19260093

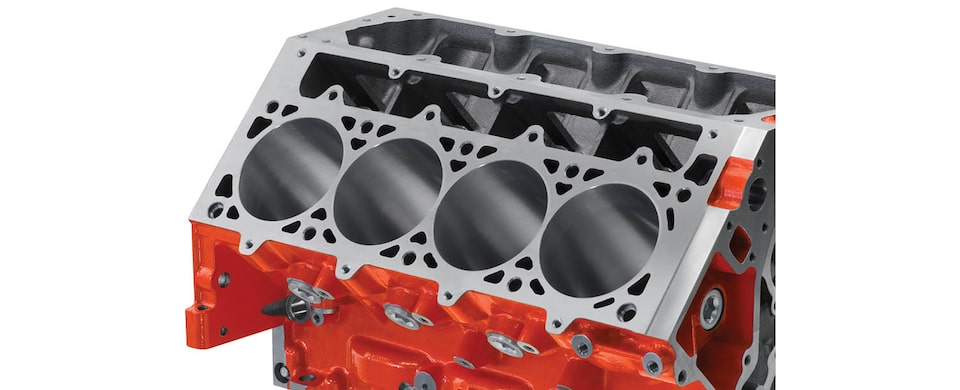

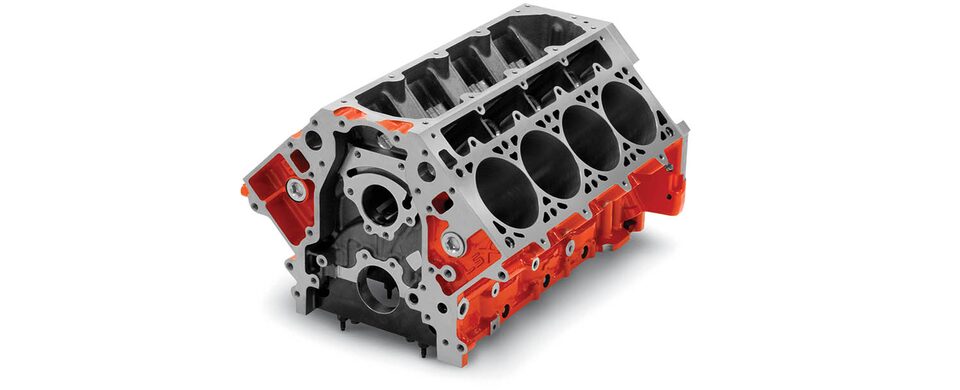

LSX BOWTIE BLOCK – STANDARD DECK
- 3.880” semi-finished Siamese cylinder bores
- 9.260” semi-finished standard deck height (ready to be decked)
- 4.250” maximum stroke (professional engine builders only)
- Capable of 364- to 482-cubic-inch displacements
- Orange powder-coated finish
- Accepts all LS-and LSX-series heads, cranks, cams, etc.
- Approximate finished weight is 225 pounds
19260100
LSX BOWTIE BLOCK – TALL DECK
- 3.880” semi-finished siamese cylinder bores
- 9.720” semi-finished standard deck height (ready to be decked)
- 4.500” maximum stroke (small-base circle camshafts required)
- Capable of 364- to 500-cubic-inch displacements
- Orange powder-coated finish
- Accepts Gen-IV LS-and LSX-series, cranks, cams, etc.
- Approximate finished weight is 250 pounds
19260095
LSX376 PRODUCTION BLOCK
- 4.065” finished bore
- Fully CNC machined
- Deck plate honed
- Align-honed main bearings
- Deck height 9.240” (production)

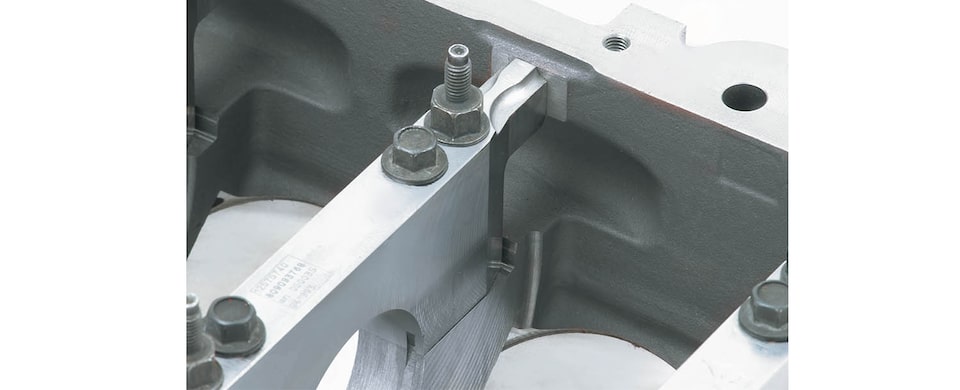

- Billet-steel main caps
- Includes all hardware
- Used in LSX376 crate engine
19260099
LSX454 PRODUCTION BLOCK
- 4.185” finished bore
- Fully CNC machined
- Deck plate honed
- Align-honed main bearings
- Deck height 9.240” (production)
- Billet-steel main caps
- Includes all hardware
- Used in LSX454 crate engine
