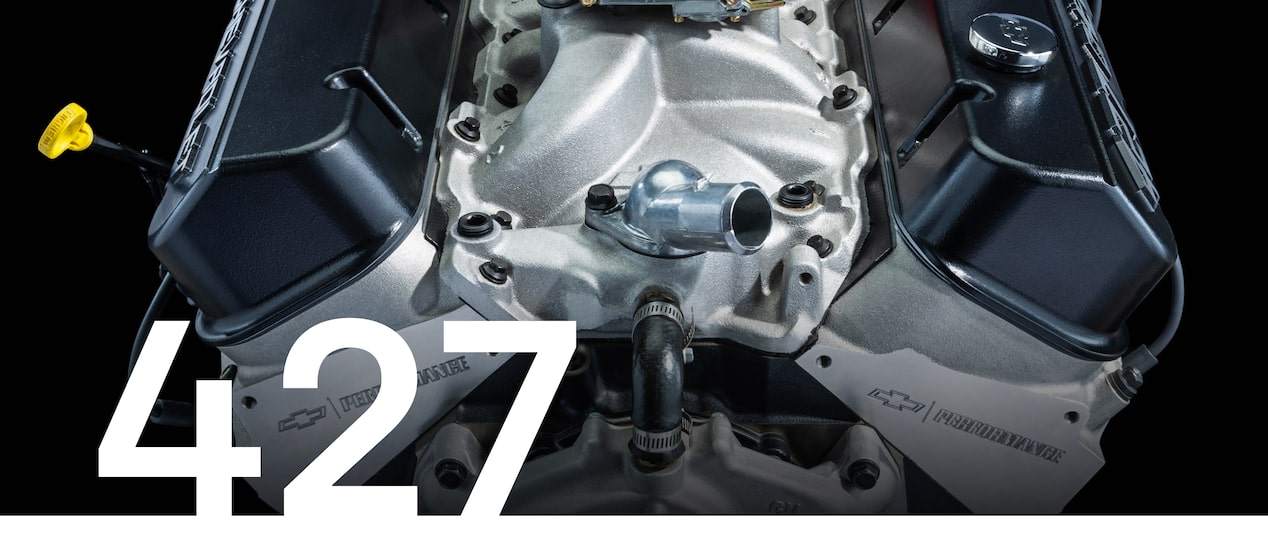

A Chevrolet Performance Parts 427 Crate Engine

Classic L88 with a Modern Twist

Classic L88 with a Modern Twist
Locate a Dealer
A Black and White Checkered Flag Against a Yellow Background in a Circle

Parts intended for competition use only*
A Yellow Triangle with an Exclamation Point in the Center

Proposition 65 Warning*
A Yellow Horsepower Icon

Up to

480 hp

Horsepower*
Two Yellow Gears Slightly Apart with an Arrow Pointing at a Curve from the Left One to the Other

Up to

490 lb.-ft.

Torque*
A Yellow Speedometer Icon

Up to

6,400

Max Rec RPM
A Yellow Displacement Icon

Up to

427 cu. in. (7.0L)

Displacement
A Yellow Horsepower Icon

Up to

480 hp

Horsepower*
Two Yellow Gears Slightly Apart with an Arrow Pointing at a Curve from the Left One to the Other

Up to

490 lb.-ft.

Torque*
A Yellow Speedometer Icon

Up to

6,400

Max Rec RPM
A Yellow Displacement Icon

Up to

427 cu. in. (7.0L)

Displacement

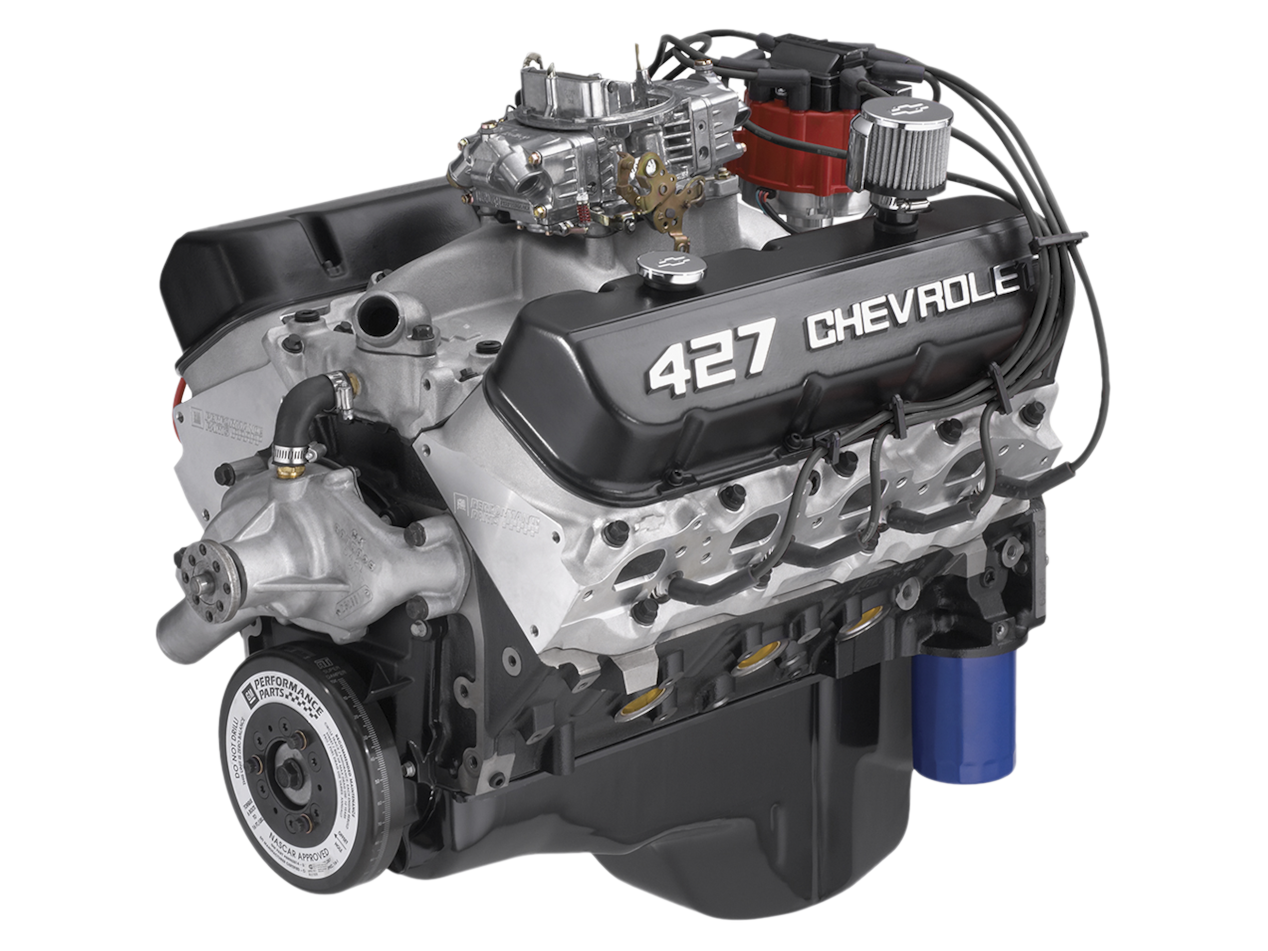

427 Engines

ZZ427/480 Deluxe
Chevrolet Performance Parts 427 Big-Block Crate Engine

View ZZ427 / 480 Deluxe

Not-your-dad's Corvette engine — a modern big-block powerhouse.
fpo

View ZZ427 / 480 Deluxe

Tech Specs
View in 2025 Catalog

Performance

Horsepower:

480 hp @ 6,000 rpm

Torque:

490 lb.-ft. @ 3,800 rpm

Max Rec RPM:

6,400

Internal Components

Crankshaft:

Forged steel

Connecting Rods:

Forged steel

Pistons:

Forged aluminum

Intake Manifold:

Dual plane

Carburetor:

770-cfm

Camshaft Type:

Hydraulic roller

Rocker Arms:

Aluminum roller-style

Water Pump:

Aluminum short-style

Engine Basics

Part Number:

194331572

Engine Type:

Chevy Big-Block V8

Displacement:

427 cu. in. (7.0L)

Block:

Cast iron with 4-bolt main caps

Balanced:

Internal

Measurements

Bore x Stroke:

4.250 in. x 3.750 in.

Valve Lift (in):

.527 intake / .544 exhaust

Camshaft Duration (@ 0.050 in):

224° intake / 234° exhaust

Compression Ratio:

10.1:1

Rocker Arm Ratio:

1.7:1

Cylinder Head and Valves

Cylinder Heads:

Aluminum oval port; 110cc chambers

Valve Size (in.):

2.190 intake / 1.880 exhaust

Fuel and Ignition

Ignition Timing:

36° Total @ 4,000 rpm

Flexplate:

14”

Distributor:

Billet HEI type

Recommended Fuel:

Premium pump

Show Less

Locate a Dealer

Tech Specs

Performance

Horsepower:

480 hp @ 6,000 rpm

Torque:

490 lb.-ft. @ 3,800 rpm

Max Rec RPM:

6,400

Engine Basics

Part Number:

194331572

Engine Type:

Chevy Big-Block V8

Displacement:

427 cu. in. (7.0L)

Block:

Cast iron with 4-bolt main caps

Balanced:

Internal

Measurements

Bore x Stroke:

4.250 in. x 3.750 in.

Valve Lift (in):

.527 intake / .544 exhaust

Camshaft Duration (@ 0.050 in):

224° intake / 234° exhaust

Compression Ratio:

10.1:1

Rocker Arm Ratio:

1.7:1

Internal Components

Crankshaft:

Forged steel

Connecting Rods:

Forged steel

Pistons:

Forged aluminum

Intake Manifold:

Dual plane

Carburetor:

770-cfm

Camshaft Type:

Hydraulic roller

Rocker Arms:

Aluminum roller-style

Water Pump:

Aluminum short-style

Cylinder Head and Valves

Cylinder Heads:

Aluminum oval port; 110cc chambers

Valve Size (in.):

2.190 intake / 1.880 exhaust

Fuel and Ignition

Ignition Timing:

36° Total @ 4,000 rpm

Flexplate:

14”

Distributor:

Billet HEI type

Recommended Fuel:

Premium pump
#/#
View in 2025 Catalog

Behind the Custom Build

Stories from iconic builders and their big-block-inspired builds.

“

After we built the car, it just keeps running great.”

"After we built the car, it just keeps running great.”

Cory & Joseph Larsen

1969 Chevelle
Two Men Pose in Front of a Red Chevrolet Sports Car with the Hood Open
Overhead View of Engineers in White Lab Coats Look at an Engine

Prestigious Automotive Roots

A look back at the Big-Block
Engine Family History.

View Timeline
Close-up Three-quarters View of a Black and Red Colored Engine with a Ventilator on Top at the Indianapolis Bowtie Nationals

Featured Event

Best Engines of the 2024 Indianapolis Bowtie Nationals
Learn More
Engine & Transmission Packages
Engine & Transmission Packages

Factory-matched Connect & Cruise* engine-and-transmission combinations that deliver.
Learn More
Learn More
A Chevrolet Performance Parts Connect and Cruise Powertrain System
A Close-up Photo of Talbert Goldman Wearing Shades and a Baseball Cap

"It simplifies the whole project. If you have any issues, you plug into it, and you work on it and go from there. It makes it so simple."

Talbert Goldman
Mike Goldman Customs

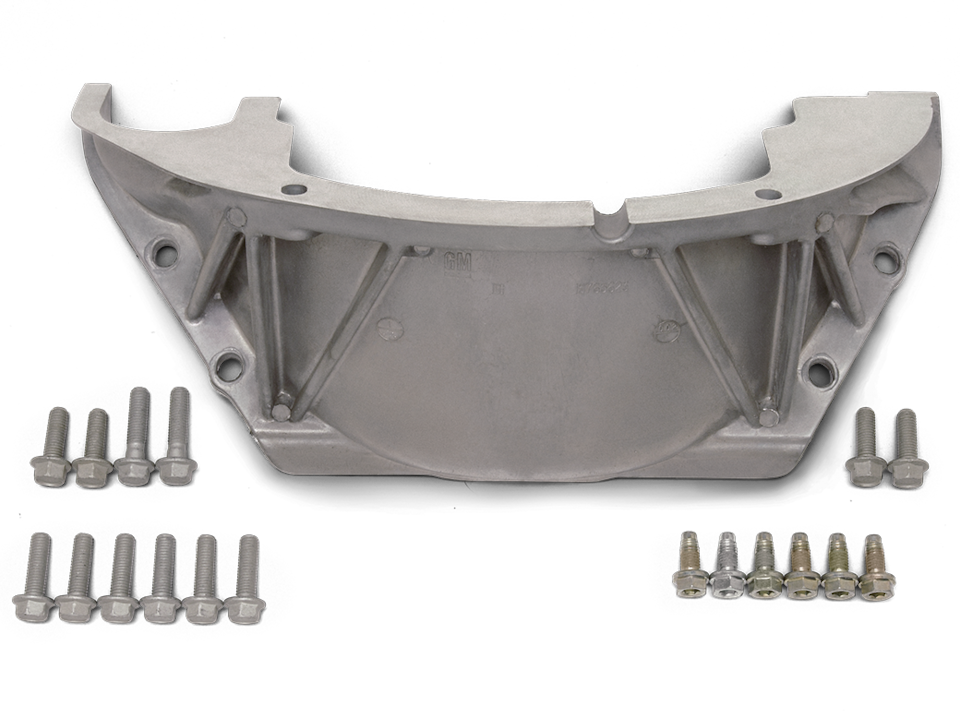

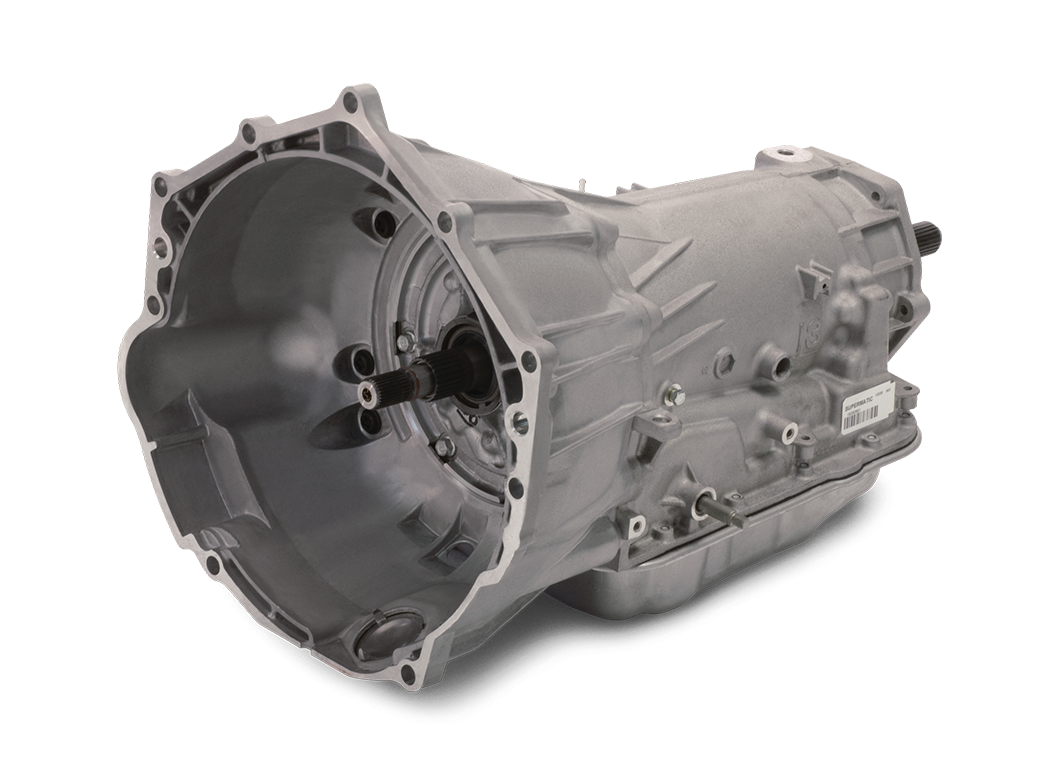

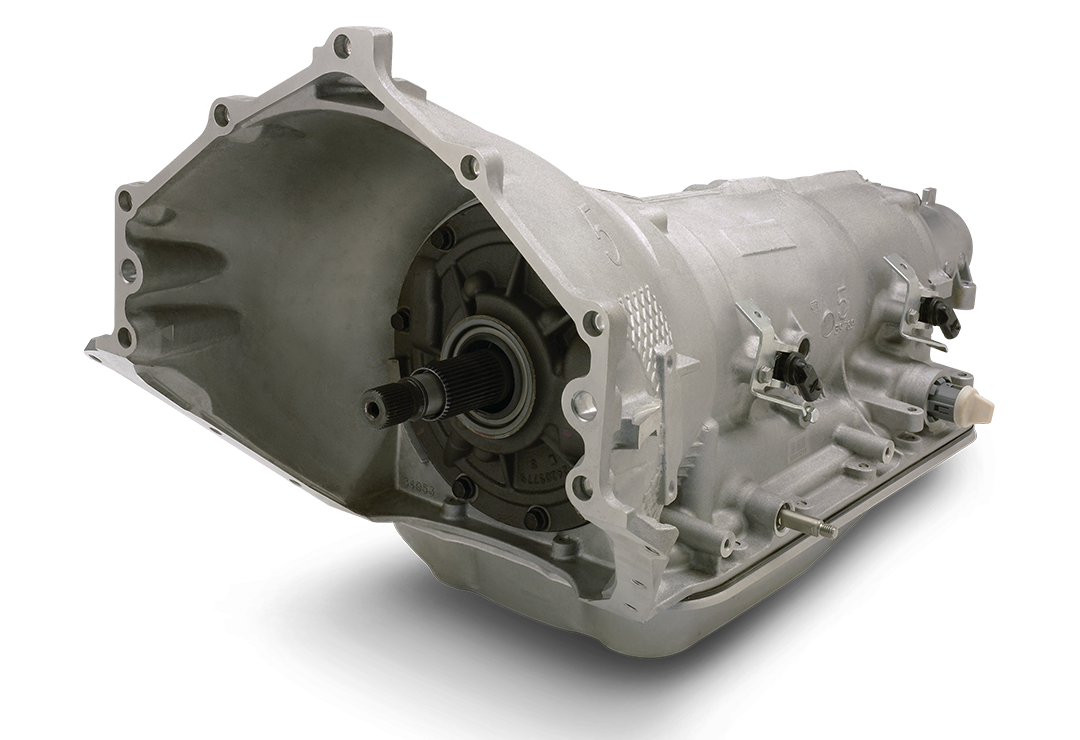

Assemble the Dream Powertrain System
