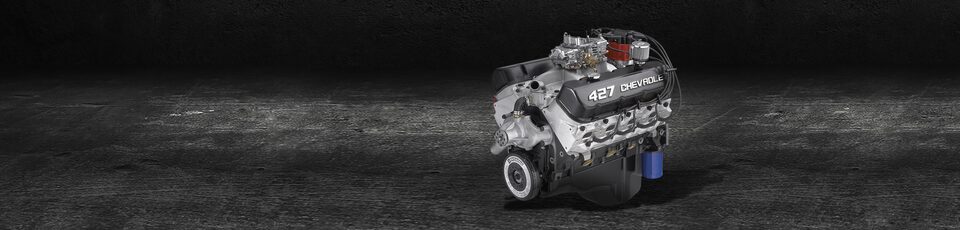

A Chevrolet Performance Parts 427 Crate Engine

Classic L88 with a Modern Twist

Classic L88 with a Modern Twist
Locate a Dealer
A Black and White Checkered Flag Against a Yellow Background in a Circle

Parts intended for competition use only*
A Yellow Triangle with an Exclamation Point in the Center

Proposition 65 Warning*
A Yellow Horsepower Icon

Up to

480 hp

Horsepower*
Two Yellow Gears Slightly Apart with an Arrow Pointing at a Curve from the Left One to the Other

Up to

490 lb.-ft.

Torque*
A Yellow Speedometer Icon

Up to

6,400

Max Rec RPM
A Yellow Displacement Icon

Up to

427 cu. in. (7.0L)

Displacement
A Yellow Horsepower Icon

Up to

480 hp

Horsepower*
Two Yellow Gears Slightly Apart with an Arrow Pointing at a Curve from the Left One to the Other

Up to

490 lb.-ft.

Torque*
A Yellow Speedometer Icon

Up to

6,400

Max Rec RPM
A Yellow Displacement Icon

Up to

427 cu. in. (7.0L)

Displacement

427 Engines

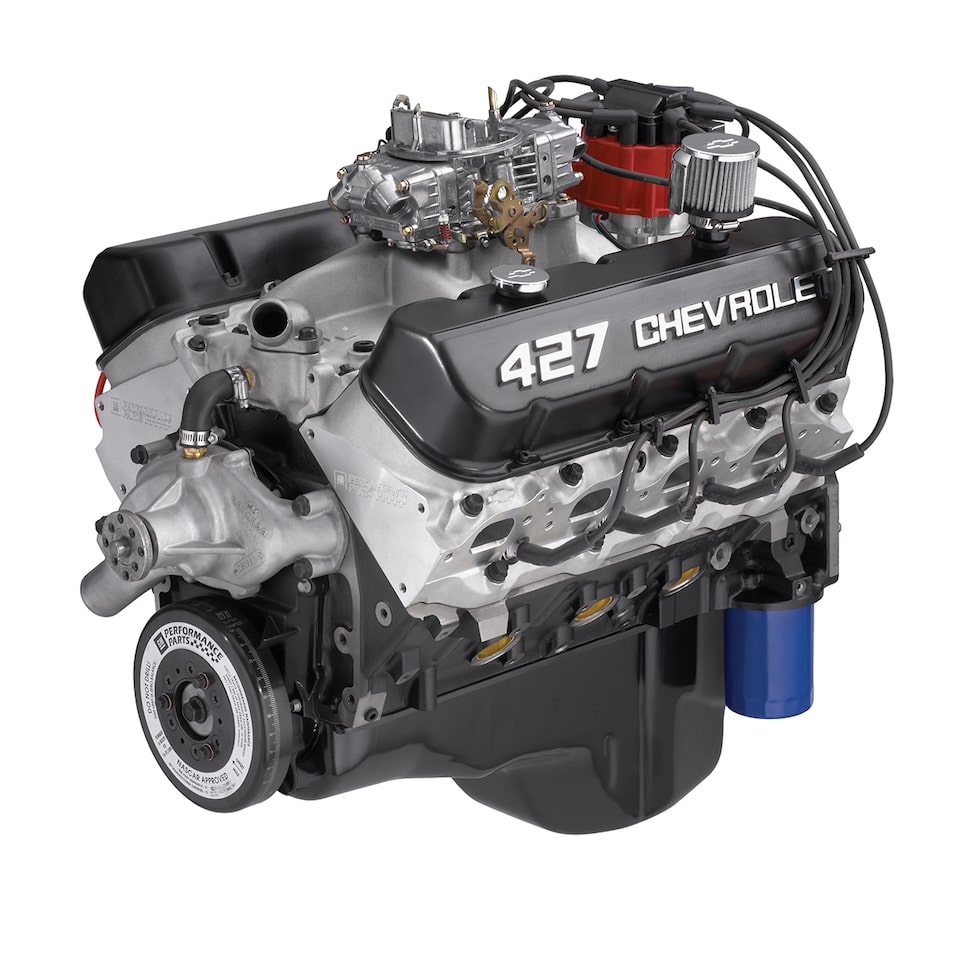

ZZ427/480 Deluxe
Chevrolet Performance Parts 427 Big-Block Crate Engine

View ZZ427 / 480 Deluxe

Not-your-dad's Corvette engine — a modern big-block powerhouse.
fpo

View ZZ427 / 480 Deluxe

Tech Specs
View in 2025 Catalog

Performance

Horsepower:

480 hp @ 6,000 rpm

Torque:

490 lb.-ft. @ 3,800 rpm

Max Rec RPM:

6,400

Internal Components

Crankshaft:

Forged steel

Connecting Rods:

Forged steel

Pistons:

Forged aluminum

Intake Manifold:

Dual plane

Carburetor:

770-cfm

Camshaft Type:

Hydraulic roller

Rocker Arms:

Aluminum roller-style

Water Pump:

Aluminum short-style

Engine Basics

Part Number:

194331572

Engine Type:

Chevy Big-Block V8

Displacement:

427 cu. in. (7.0L)

Block:

Cast iron with 4-bolt main caps

Balanced:

Internal

Measurements

Bore x Stroke:

4.250 in. x 3.750 in.

Valve Lift (in):

.527 intake / .544 exhaust

Camshaft Duration (@ 0.050 in):

224° intake / 234° exhaust

Compression Ratio:

10.1:1

Rocker Arm Ratio:

1.7:1

Cylinder Head and Valves

Cylinder Heads:

Aluminum oval port; 110cc chambers

Valve Size (in.):

2.190 intake / 1.880 exhaust

Fuel and Ignition

Ignition Timing:

36° Total @ 4,000 rpm

Flexplate:

14”

Distributor:

Billet HEI type

Recommended Fuel:

Premium pump

Show Less

Locate a Dealer

Tech Specs

Performance

Horsepower:

480 hp @ 6,000 rpm

Torque:

490 lb.-ft. @ 3,800 rpm

Max Rec RPM:

6,400

Engine Basics

Part Number:

194331572

Engine Type:

Chevy Big-Block V8

Displacement:

427 cu. in. (7.0L)

Block:

Cast iron with 4-bolt main caps

Balanced:

Internal

Measurements

Bore x Stroke:

4.250 in. x 3.750 in.

Valve Lift (in):

.527 intake / .544 exhaust

Camshaft Duration (@ 0.050 in):

224° intake / 234° exhaust

Compression Ratio:

10.1:1

Rocker Arm Ratio:

1.7:1

Internal Components

Crankshaft:

Forged steel

Connecting Rods:

Forged steel

Pistons:

Forged aluminum

Intake Manifold:

Dual plane

Carburetor:

770-cfm

Camshaft Type:

Hydraulic roller

Rocker Arms:

Aluminum roller-style

Water Pump:

Aluminum short-style

Cylinder Head and Valves

Cylinder Heads:

Aluminum oval port; 110cc chambers

Valve Size (in.):

2.190 intake / 1.880 exhaust

Fuel and Ignition

Ignition Timing:

36° Total @ 4,000 rpm

Flexplate:

14”

Distributor:

Billet HEI type

Recommended Fuel:

Premium pump
View in 2025 Catalog
